Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuilding,power station,and machine manufacturing.
המכשיר , דגם 8826, כולל שני גששים, למדידת עובי צבע או ציפוי על פלדות ומתכות אל ברזליות, אלומיניום נחושת.....
תחום מדידה עד 1250 מיקרון
רזולוציה של 1 או 0.1 מיקרון
דיוק מדידה 3% או 2.5 מיקרוןקוטר הגשש 6 מ"מ.
עובי החומר הנבדק מעל 0.3 מ"מ.
המכשיר כולל ערכת לוחיות כיול.
המכשיר הנפוץ למדידת עובי צבע/ציפוי על מצע ברזלי ואל-ברזלי במחיר מיוחד.
It meets the standards of both ISO2178 and ISO2316. Suitable for the laboratory and for use in harsh field conditions.
The F probes measure the thickness of non-magnetic materials such as paint, plastic procelain enamel, copper, zinc, aluminum, chrome etc. on magnetic materials such as iron, nickel and etc. It is often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminum tile, some alloy tile and paper etc.
The NF probes measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder applied to aluminum, brass and non-magnetic stainless steel etc.
Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time.
Wide measuring range and high resolution.
Digital display gives exact reading with no guessing errors.
The use of durable, long lasting components, including a strong and light weight ABS plastic housing assures maintenance free.
LCD display : 4 digits, 10mm LCD
Coating thickness range : 0 - 1000 μm / 0 - 40 mil
Accuracy : ± 1 - 3% n or 2.5 μm (whichever is greater)
Power supply : 4 x 1.5V AA (UM3) batteries (not included)
Operation Temperature : 0 - 50°C
Operation Humidity : below 80%
Unit size : 161 x 69 x 32 mm (6.3 x 2.7 x 1.2 inch)
Unit Weight 260 grams.

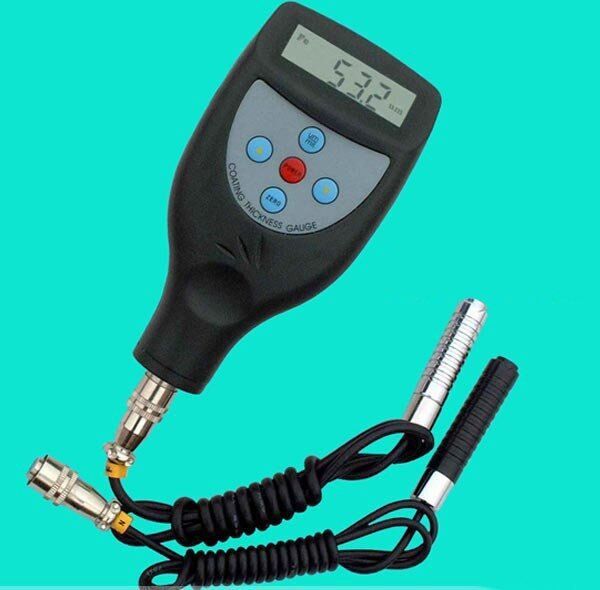

מדי עובי צבע וציפוי, עם גשש אינטגרלי או עם כבל, לתחום רחב1000, 1250, 2000, 5000 ועד 15000 מיקרון.
Description:
With separate probe(s)
Function: TG-2100F (ferrous substrate) TG-2100N (non ferrous substrate) TG-2100FN (2 in 1, F & NF type)
Operating principle: magnetic induction/eddy current (F/NF)
Measuring range:0-5000um/0-50mil
Resolution; 0.1/1
Accuracy: ±1-3%n or ±2.5um
Min. measuring area: 6mm
Min. sample thickness: 0.3mm
Battery indicator: low battery indicator
Metric/ imperial: convertible
Power supply: 4x1.5V AAA(UM-4)battery
Auto power off
Operating conditions:0-+45℃(32℉-104℉), ≤90%RH
Dimensions: 126x65x27mm
weight: 81g(not including battery)
Optional accessories: other range 0-200um to 15000um
Application:
1. TG-2100F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
2. TG-2100N can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel) Standard Delivery of TG2100FN:
Main unit (5000um) 1
F type probe 1
N type probe 1
F calibration base set 1
N calibration base set 1
Calibration foil set 1set (4 foils)
Carrying case 1
Instruction manual 1
Optional Accessories
Cable and software for RS-232C
Customized testing range
